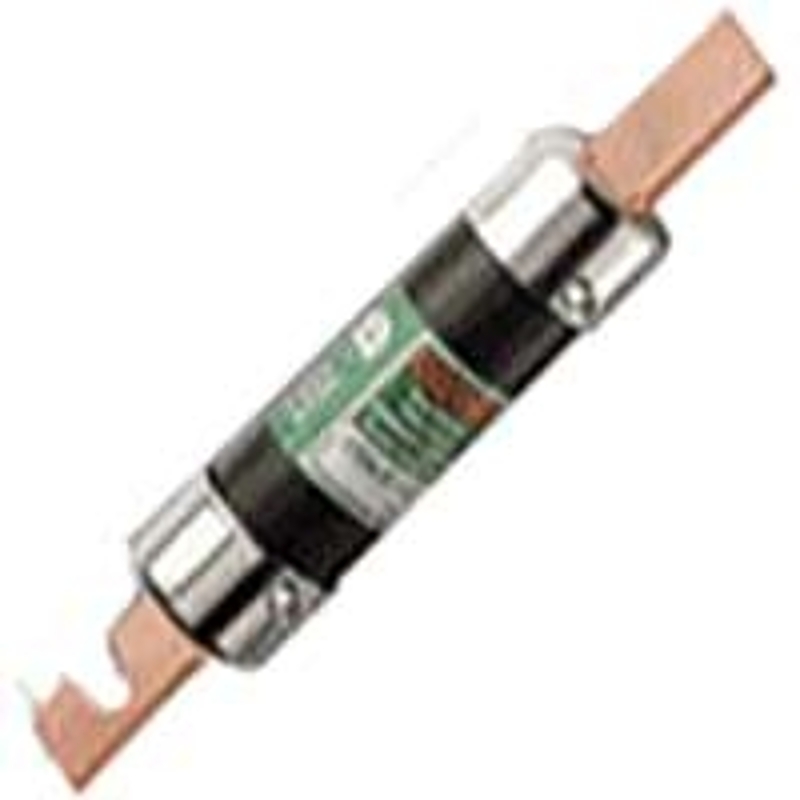

Bussmann BP/FRN-R-100 Heavy-Duty Fuse, 100 A, 250 VAC, 125 VDC, 20, 200 kA Interrupt, Fiberglass Bod
Dual-element fuses can be applied in circuits subject to temporary motor overloads and surge currents to provide both high performance short-circuit and overload protection
Specifications
- Body Material
- Fiberglass
- Current Rating
- 100 A
- Diameter
- 1-1/16 in
- Element Type
- Dual
- Fuse Group
- L
- Fuse Type
- Time Delay
- Indicator Type
- Non-Indicating
- Interrupt Rating
- 20 200 kA
- Length
- 5-7/8 in
- Rejection/Non-Rejection
- Rejection
- Terminal Type
- Ferrule
- Voltage Rating
- 250 VAC 125 VDC
- Manufacturer
- BULLMAN
