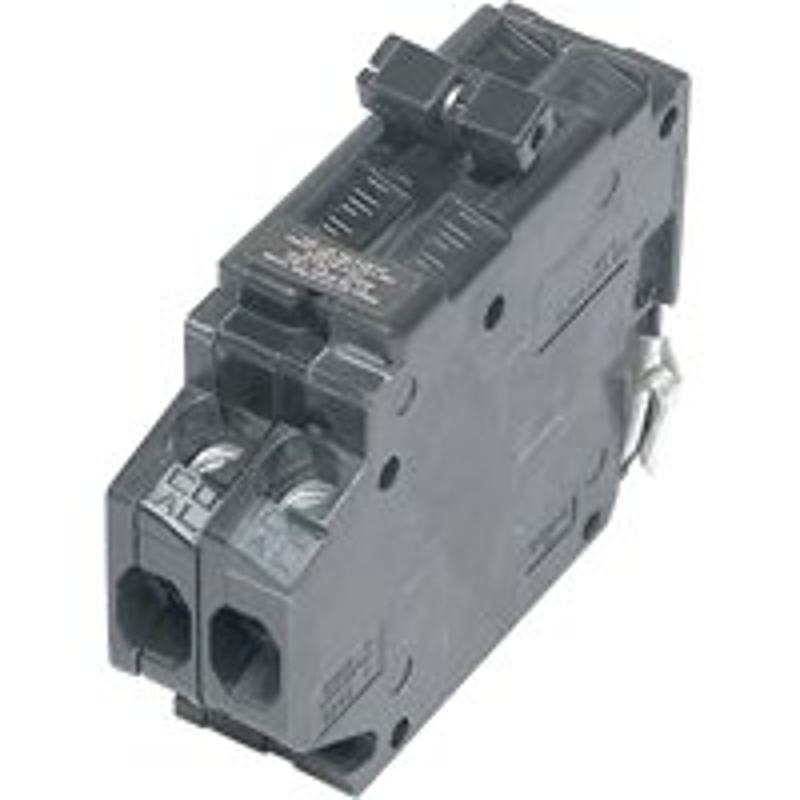

Challenger UBITBA220 Circuit Breaker, Type UBITBA, 20 A, 2 -Pole, 120/240 V, Plug Mounting
Requires one 1 in space per breaker. HACR rated. 120/240 VAC. 10,000 AIC. Also known as Challenger “A” Series.
Specifications
- Actuator Type
- Magnetic Thermal
- Current Rating
- 20 A
- Dimensions
- 3.63 in L x 1 W x 2.5 H
- Interrupt Rating
- 10 kA
- Mounting Type
- Plug
- Number of Phases
- 1
- Number of Poles
- 2
- Operating Frequency
- 50/60 Hz
- Suitable for
- Thomas and Betts/Challenger Load Centers
- Terminal Type
- Lug
- Type
- Type UBITBA
- Voltage Rating
- 120/240 V
- Wire Size
- 14 to 4 AWG
- Manufacturer
- CONNECTICUT ELECTRIC
