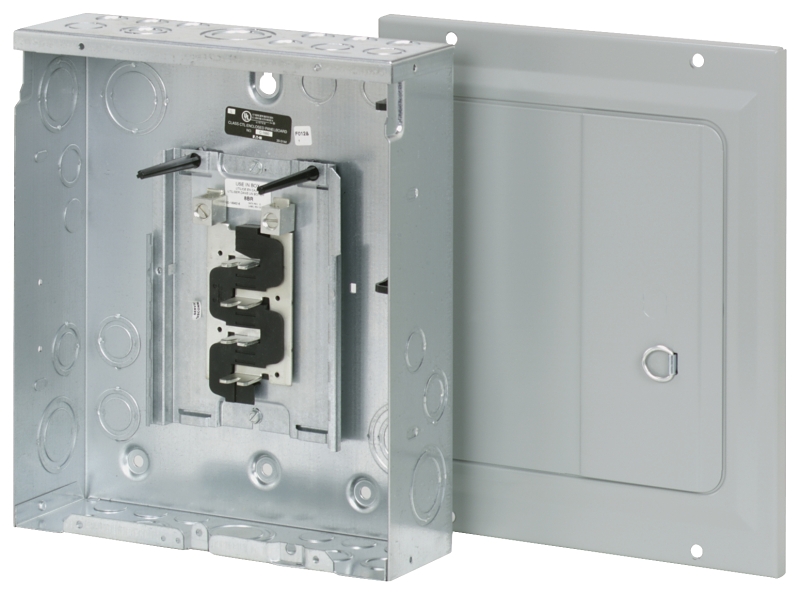

Cutler-Hammer BR Series BR816L125SDP Load Center, 125 A, 8-Space, 16-Circuit, Main Lug, NEMA 1 Enclo
Load Centers are enclosures specifically designed to house the branch circuit breakers and wiring required to distribute power to individual circuits. They contain either a main breaker when used at the service entrance point or a main lug when used as a sub-panel to add circuits to existing service. The main breaker protects the main entire panel and can be used as a service disconnect. The branch breakers protect the wires leading to individual electrical loads such as fixtures and outlets.
Specifications
- Breaker/Load Center Type
- Main Lug
- Bus Bar Material
- Aluminum
- Cable Size
- 14 to 1 AWG
- Current Rating
- 125 A
- Enclosure Type
- NEMA 1
- Interrupt Rating
- 10 kA
- Mounting Type
- Surface
- Number of Circuits
- 16
- Number of Phases
- 1
- Number Of Spaces
- 8
- Voltage Rating
- 120/240 V
- Wiring Configuration
- 3-Wire
- Brand
- Cutler-Hammer
- Color
- Light Gray
- Manufacturer
- CUTLER-HAMMER
