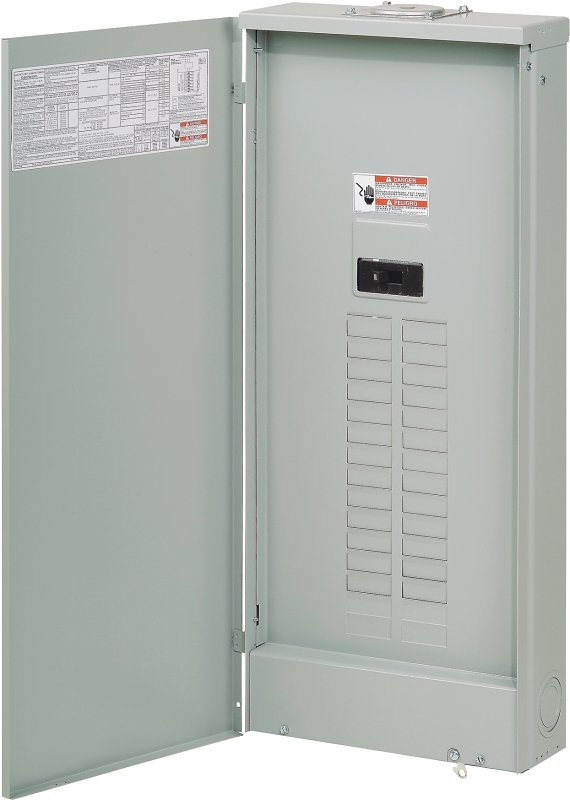

Cutler-Hammer BR3040B200R Loadcenter, 120/240 V, 200 A, 30-Space
Rainproof galvanized steel enclosure. Single phase, 3-wire, insulated/bonded neutral, 30 (1 in) spaces, 40 poles, 120/240 VAC. Main breaker type BW at 25,000 AIC. Furnished with hub closure plates, hubs and ground bar kit (necessary for sub-feeding) sold separately. Tin-plated aluminum bus bar. Twin neutral with non-removable cross bus connecting them. When bonded, unused neutral connections may be used for equipment ground protectors in service entrance application. #2 – 300 kcmil wire range. Electrostatic powder coat, baked urethane painted. Rotate 180 deg for bottom feed; orientation of main breaker handle consistent with NEC 240-81 requirements because it operates horizontally. 14-5/16 in x 34-1/8 in x 5-3/16 in. UL listed file E52977.
Specifications
- Breaker/Load Center Type
- Plug-On Neutral
- Bus Bar Material
- Aluminum
- Bus Bar Rating
- 200 A
- Buss Bar Material
- Aluminum
- Cable Size
- 2/0 AWG
- Current Rating
- 200 A
- Enclosure Type
- NEMA 3R
- Includes
- Cover
- Interrupt Rating
- 10 kA
- Mounting Type
- Flush Surface
- Number of Circuits
- 60
- Number of Phases
- 1
- Number of Poles
- 40
- Number Of Spaces
- 30
- Temperature Rating
- 60/75 deg C
- Voltage Rating
- 120/240 V
- Brand
- Cutler-Hammer
- Manufacturer
- CUTLER-HAMMER
