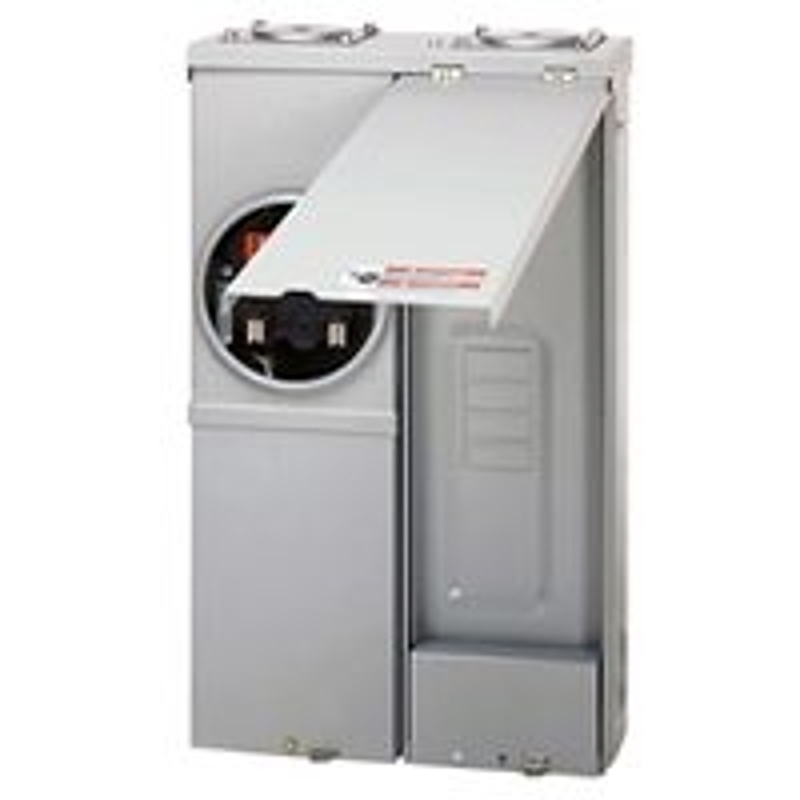

Cutler-Hammer MBE24L125BTS Meter Breaker, 125 A, 2-Space, 4-Circuit, Main Lug, NEMA 3R Enclosure
A meter breaker is service entrance equipment that consists of a single meter socket and load center (circuit breaker distribution section) or meter socket and main breaker combined in one enclosure. Sometimes called combos, all-in-ones, meter centers or meter mains these units are increasing in popularity as the socket and load center or main breaker are located in one location, thus providing the contractor with a labor and material savings when installing.
Specifications
- Breaker/Load Center Type
- Main Lug
- Bus Bar Material
- Aluminum
- Cable Size
- 14 to 2/0 AWG
- Current Rating
- 125 A
- Enclosure Type
- NEMA 3R
- Interrupt Rating
- 10 kA
- Mounting Type
- Surface
- Number of Circuits
- 4
- Number of Phases
- 1
- Number Of Spaces
- 2
- Voltage Rating
- 120/240 V
- Wiring Configuration
- 3-Wire
- Brand
- Cutler-Hammer
- Manufacturer
- CUTLER-HAMMER
