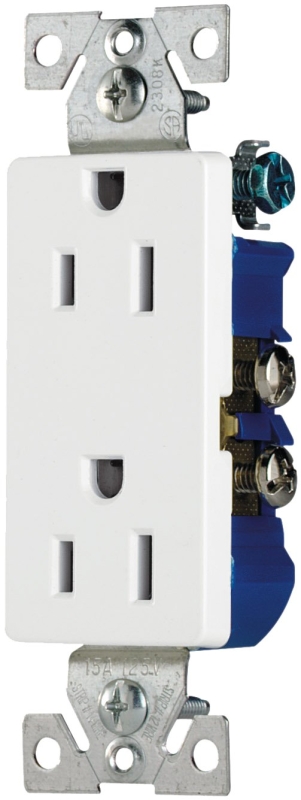

Eaton Wiring Devices 1107W Duplex Receptacle, 15 A, 2-Pole, 5-15R, White
Decorator receptacles feature longer, wider straps providing 40% more contact area to wall board. Virtually eliminates floating installations. Patented built-in wire stripper for #14 and #12 wire to speed installation. Patented built-in wire looper for pre-looping. Tri-combo screws accept slotted, Phillips and Robertson-head tools for installation flexibility. Terminal screws backed out – ready for wiring. Side wire terminals accept up to #10 solid or stranded wire. Push-in terminals accept #14 solid wire.
Specifications
- Current Rating
- 15 A
- Dimensions
- 3.81 in H x 0.69 in W x 1.3 in D
- Material
- Thermoplastic
- Mounting Type
- Flush
- NEMA Configuration
- 5-15R
- Number of Poles
- 2
- Number Of Wires
- 3
- Operating Temperature
- -4 to 140 deg F
- Voltage Rating
- 125 VAC
- Wire Size
- 14 to 10 AWG
- Wiring Type
- Push Side
- Brand
- Eaton Wiring Devices
- Color
- White
- Manufacturer
- COOPER WIRING DEVICES
