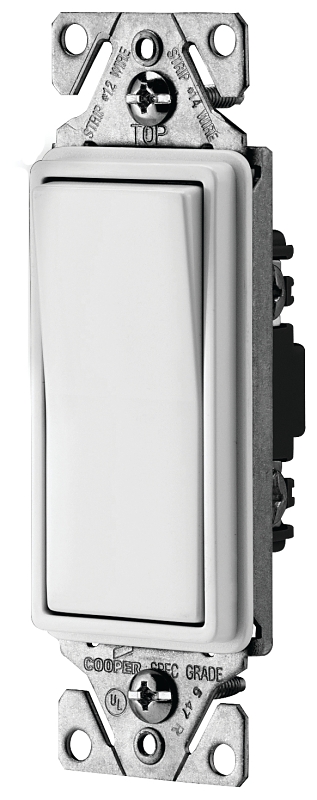

Eaton Wiring Devices 7500 Series C7501W-SP-L Rocker Switch, 15 A, 120/277 V, Single-Pole, Lead Wire
Ultrasonic welding and integrated construction of the strap and body. Backwire clamps on the side terminals for installation of #12 and #14 wire. Redesigned paddle. Built-in wire stripper for #12 and #14 wire. Stippled ground screw standard. 120/277 VAC rating for fluorescent lighting fixtures typical in commercial applications. Push in terminals accept #14 solid wire only. Temperature rating of -20 to 60 deg C. Meets flammability requirements per UL 94, 6504, V2 rated, VO rated. UL and cUL Listed, Meets all UL20 requirements, file # E18704. Carded.
Specifications
- Contact Configuration
- SPST
- Current Rating
- 15 A
- Dimensions
- 4.19 in L x 1.44 in W x 0.97 in D
- Housing Material
- Thermoplastic
- Includes
- (1) Metal Strap
- Mounting Type
- Strap
- Temperature Rating
- -20 to 60 deg C
- Terminal Type
- Lead Wire
- Voltage Rating
- 120/277 V
- Brand
- Eaton Wiring Devices
- Color
- White
- Manufacturer
- COOPER WIRING DEVICES
