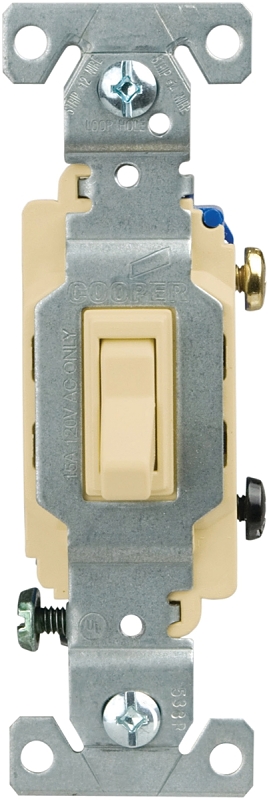

Eaton Wiring Devices CSB115STV-SP Toggle Switch, 15 A, 120/277 V, Screw Terminal, Nylon Housing Mate
Small toggle switch blends with standard grade toggles. Larger contacts, backwire clamps on the side terminals. Side wire terminals accept up to number 10 solid wire. Back wire terminal accepts 12 ga or 14 ga wire. Heavy-duty cam action mechanism. Long, broad steel mounting strap, zinc-plated for corrosion resistance. Built-in wire stripper for #12 and #14 wire. Ground screw terminal, stippled line and ground contacts standard. Tri-combo head mounting and terminal screws. 15 A, 120/277 V. cULus listed, NOM certified.
Specifications
- Actuator Type
- Cam
- Contact Material
- Silver
- Current Rating
- 15 A
- Dielectric Strength
- 1500 V
- Housing Material
- Nylon
- Mounting Type
- Wall
- Number of Poles
- 1
- Temperature Rating
- -20 to 60 deg C
- Terminal Type
- Screw
- Voltage Rating
- 120/277 V
- Wattage Rating
- 0.5 to 2 hp
- Brand
- Eaton Wiring Devices
- Color
- Ivory
- Manufacturer
- COOPER WIRING DEVICES
