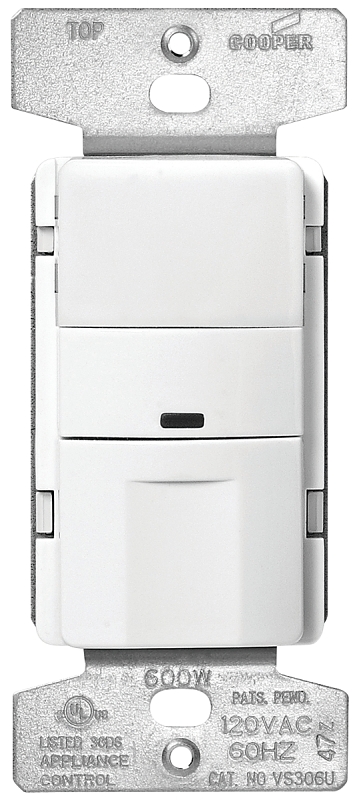

Eaton Wiring Devices OS306U-W-K Motion Sensor Switch, 120 V, 1-Pole, Motion Sensor, 180 deg Sensing,
Eaton Wiring Devices’ stylish passive infrared wallbox sensor provides a convenient energy saving lighting control alternative for 120 V applications. The sensor includes light level sensing capability to further enhance the energy savings by preventing automatic control of the lights when the ambient light level is sufficient. This sensor is easily installed in any standard wallbox to control most lighting loads and is available in six colors.
Specifications
- Connection Type
- Wire
- Dimensions
- 1.85 in L x 1.55 in W x 2.6 in H
- Frequency Rating
- 60 Hz
- Lamp Type
- CFL Fluorescent Halogen Incandescent LED
- Material
- Polycarbonate
- Mounting Type
- Wall
- Number of Poles
- 1
- Sensing Angle
- 180 deg
- Sensing Range
- 450 sq-ft
- Sensor Type
- Motion
- Temperature Rating
- 0 to 40 deg C
- Timer Range
- 5 to 30 min
- Voltage Rating
- 120 V
- Wattage Rating
- 600 W
- Brand
- Eaton Wiring Devices
- Color
- White
- Manufacturer
- COOPER WIRING DEVICES
