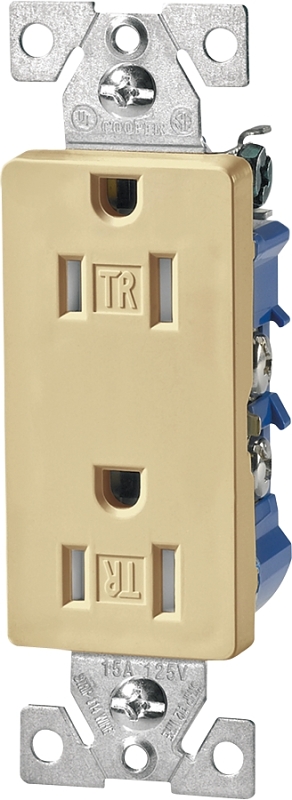

Eaton Wiring Devices TR1107V Duplex Receptacle, 15 A, 2-Pole, 5-15R, Ivory
Tamper-resistant decorator receptacles. Provides compliance with 2011 NEC Article 406.12 that states that all receptacles installed in dwelling units must be tamper-resistant. Durable impact-resistant thermoplastic face and back body is virtually unbreakable. TR designation provides visual identification. Terminal screws are backed out and ready to wire. Extra-long and extra-wide mounting straps with patented built-in wire stripper for #14 and #12 wire to speed installation. Side-wire terminals accept up to #10 solid or stranded wire and push-in terminals accept #14 solid wire.
Specifications
- Current Rating
- 15 A
- Dimensions
- 13 in L x 069 in W x 381 in H
- Material
- Thermoplastic
- Mounting Type
- Flush
- NEMA Configuration
- 5-15R
- Number of Poles
- 2
- Number Of Wires
- 3
- Operating Temperature
- -4 to 140 deg F
- Voltage Rating
- 125 V
- Wire Size
- 14 to 10 AWG
- Wiring Type
- Push Side
- Brand
- Eaton Wiring Devices
- Color
- Ivory
- Manufacturer
- COOPER WIRING DEVICES
