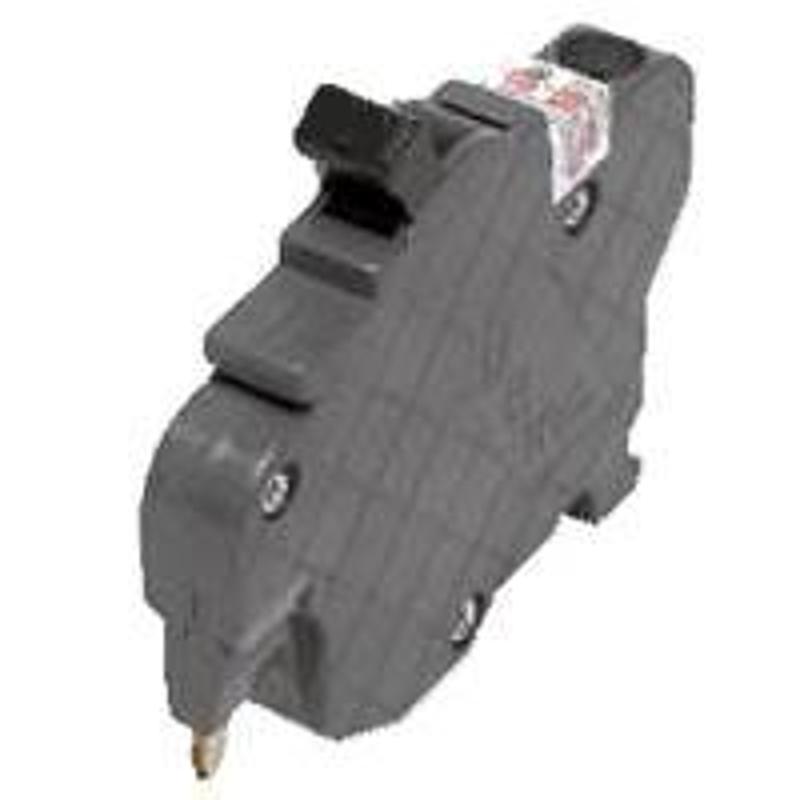

Federal Pacific UBIF020N Circuit Breaker, Type NC, 20 A, 1-Pole, 120 V, Standard Trip, Plug-In Mount
For Federal Pacific Load Centers. HACR rated. 120/240 VAC, 10,000 AIC.
Specifications
- Current Rating
- 20 A
- Dimensions
- 3.36 in L x 0.5 W x 2.55 H
- Interrupt Rating
- 10 kA
- Mounting Type
- Plug
- Number of Phases
- 1
- Number of Poles
- 1
- Operating Frequency
- 50/60 Hz
- Suitable for
- Federal Pacific Electric load centers
- Terminal Type
- Lug
- Trip Type
- Standard
- Type
- Type NC
- Voltage Rating
- 120 V
- Wire Size
- 14 to 10 AWG
- Brand
- Federal Pacific
- Manufacturer
- CONNECTICUT ELECTRIC
