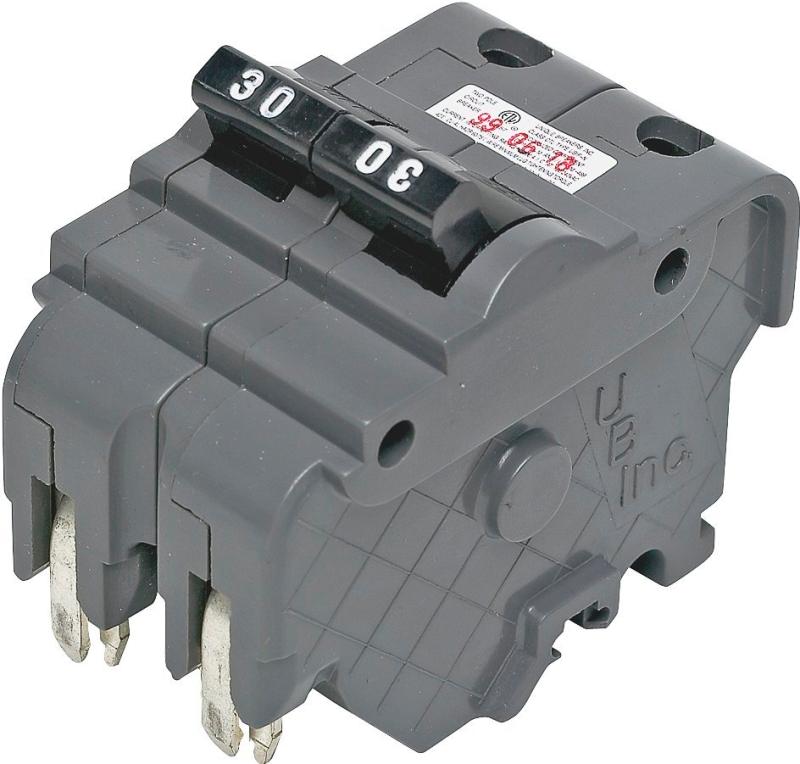

Federal Pacific UBIF230N Circuit Breaker, Type NA, 30 A, 2-Pole, 120/240 V, Thermal Magnetic Trip
Replacement for Federal Pacific Load Centers. Single pole SWD rated, double pole is HACR rated. 120/240 VAC, 10,000 AIC.
Specifications
- Actuator Type
- Magnetic Thermal
- Current Rating
- 30 A
- Dimensions
- 3.36 in L x 2 in W x 2.55 H
- Interrupt Rating
- 10 kA
- Mounting Type
- Plug
- Number of Phases
- 1
- Number of Poles
- 2
- Operating Frequency
- 50/60 Hz
- Suitable for
- Federal Pacific Electric load centers
- Terminal Type
- Lug
- Type
- Type NA
- Voltage Rating
- 120/240 V
- Wire Size
- 14 to 6 AWG
- Brand
- Federal Pacific
- Manufacturer
- CONNECTICUT ELECTRIC
