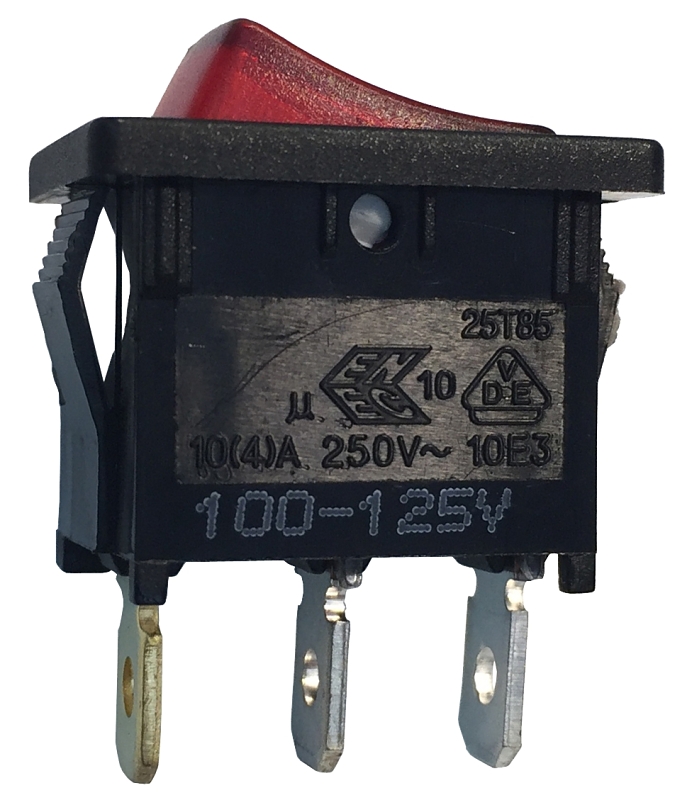

GB GSW GSW-48 Rocker Switch, 10/13 A, 125/250 V, SPST, 0.52 x 0.77 in Panel Cutout, Nylon Housing Ma
Gardner Bender illuminated mini rocker switches feature a rectangular shape with a red full face that gently glows from an incandescent bulb when switch is actuated to the “on” position. Each miniature rocker switch is great for various auto, marine and industrial applications, such as lighting panels, industrial controls and van conversions. No matter what the application, these rocker switches can be a great solution for a professional look and quality performance. To clearly indicate the actuation of an application, try an illuminated rocker switch. If an application requires only momentary actuation, try a momentary rocker switch. Along with our standard line of rockers.
Specifications
- Contact Configuration
- SPST
- Current Rating
- 10/13 A
- Dielectric Strength
- 1500 V
- Dimensions
- 27.2 mm L x 21 mm W x 15 mm H
- Housing Material
- Nylon
- Panel Cutout Size
- 0.52 x 0.77 in
- Temperature Rating
- -25 to 85 deg C
- Voltage Rating
- 125/250 V
- Wattage Rating
- 0.5 hp
- Color
- BLACK
- Manufacturer
- GARDNER BENDER
