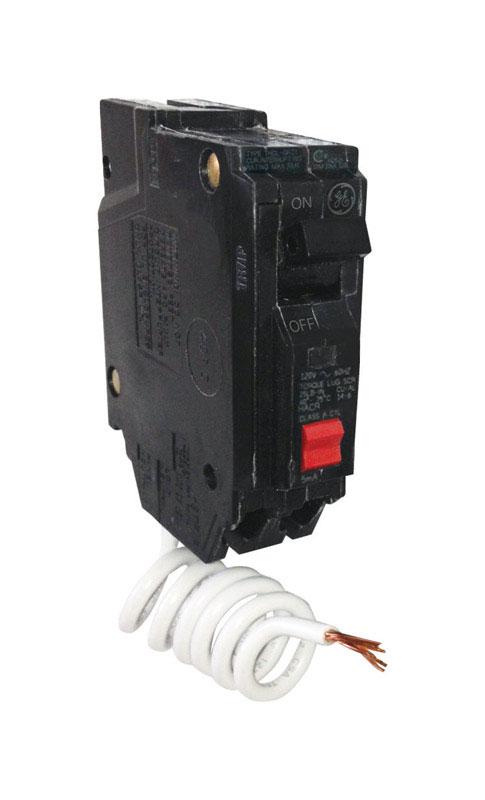

GE Industrial Solutions THQL1120GFTP Feeder Circuit Breaker, Thermal Magnetic, 20 A, 1-Pole, 120 V
Tin plated copper stab to create a reliable, permanent and corrosion-resistant connection. Ensures its ground circuitry is functioning properly by automatically running diagnostic testing on a periodic basis. Should a problem be detected, the circuit breaker will trip and will need to be replaced. Unit provides protection against overloads, short circuits and ground faults. Class A 5 mA ground fault circuit interrupter. Wire range is #14 to 8 AWG CU/#12 to 8 AWG AL. UL listed. 4-1/2 in H x 1-1/4 in W x 3 in depth, 0.479 lb.
Specifications
- Actuator Type
- Quick-Make Quick-Break
- Current Rating
- 20 A
- Frame Type
- Q-Line
- Interrupt Rating
- 10 kA
- Mounting Type
- Plug
- Number of Phases
- 1
- Number of Poles
- 1
- Operating Frequency
- 50/60 Hz
- Operating Temperature
- 60 to 75 deg C
- Suitable for
- Reverse Feed
- Terminal Type
- Screw Clamp
- Trip Type
- Non-Interchangeable
- Type
- Thermal Magnetic
- Voltage Rating
- 120 V
- Wire Size
- 14 to 8 12 to 8 AWG
- Brand
- GE Industrial Solutions
- Manufacturer
- GE ELECTRICAL
