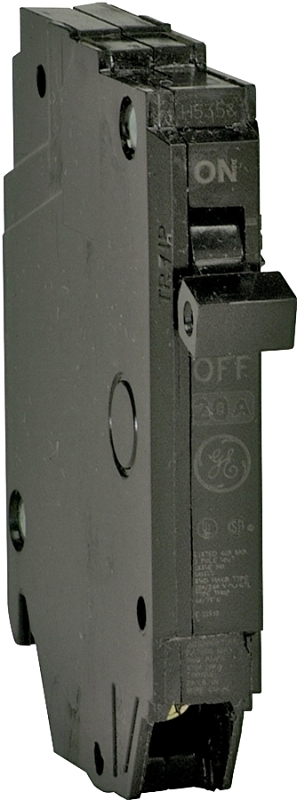

GE Industrial Solutions THQP120 Feeder Circuit Breaker, Type THQP, 20 A, 1 -Pole, 120/240 V, Plug Mo
Copper-to-copper connections, calibrated for optimum trip performance, heat-resistant thermoset cases and covers, cemented calibration screw. Nearly identical to Type THQL with the same design and performance, yet only taking up 1/2 the space, 1/2 in per pole. UL listed, HACR rated. 15 and 20 A SWD, switching duty rated, suitable for 120 V fluorescent lighting loads. 15 to 25 A #14 to 8 Cu or #12 to 8 Al AWG wire, 30 to 50 A #8 to 4 Cu or #8 to 2 Al AWG wire. 3-9/32 in H x 1/2 in W x 2-3/8 in D. 120/240 V, 10,000 AIR.
Specifications
- Actuator Type
- Toggle
- Current Rating
- 20
- Dimensions
- 3.28 in L x 0.5 in W x 2.58 in H
- Frame Type
- Q-Line
- Interrupt Rating
- 10
- Mounting Type
- Plug
- Number of Phases
- 1
- Number of Poles
- 1
- Operating Frequency
- 50/60
- Operating Temperature
- 60 to 75
- Suitable for
- Reverse Feed
- Terminal Type
- Lug
- Trip Type
- Non-Interchangeable
- Type
- Type THQP
- Voltage Rating
- 120/240
- Wire Size
- 14 to 8 12 to 8
