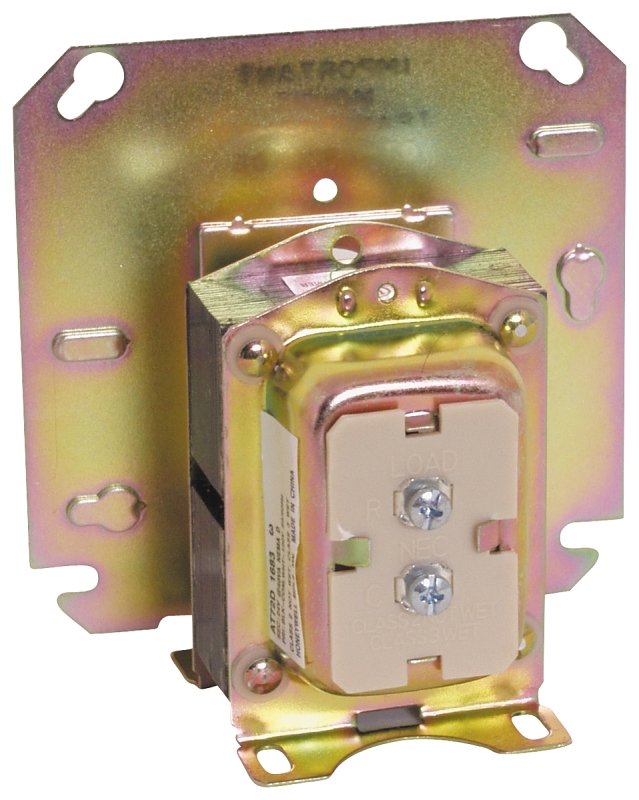

Honeywell AT72D1683 Transformer, 40 VA, 26.5 V Secondary, Clamp Mounting
24 V control circuit step-down transformer designed to power any 24 V control system, including thermostats, gas valves and/or relays. Voltage (50/60 Hz) 120. Connections 2 screw terminals, can be foot-mounted, plate mounted on 4 in x 4 in, 4 in octagon or 2 in x 4 in electrical boxes (transformer all above plate or 3/4 above plate) or clamp mounted via a junction box knockout.
Specifications
- Dimensions
- 3-1/16 in L x 2-7/32 in W x 3-7/32 in H
- Mounting Type
- Clamp
- Nema Rating
- D
- Operating Temperature
- -29 to 41 deg C
- Primary Voltage
- 120 V
- Secondary Voltage
- 26.5 V
- Termination Type
- Screw
- VA Rating
- 40 VA
- Brand
- Honeywell
- Manufacturer
- HONEYWELL
