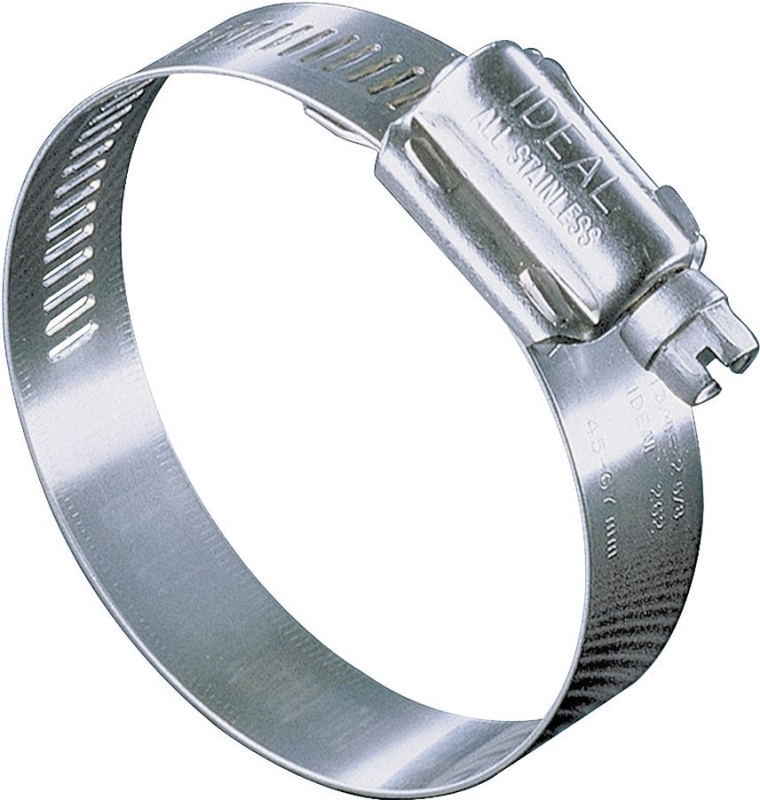

IDEAL-TRIDON Hy-Gear 68-0 Series 6828053 Worm Gear Hose Clamp, Stainless Steel
Features a full-size 9/16 in band and housing width that allows 12-1/2% more sealing area over conventional 1/2 in bands. One-piece housing and interlocked construction. Mechanical design locks the one piece housing directly to the band using the full strength of the material to provide maximum anti-shear protection. No spot welds to rupture under stress or corrosion. One-piece housing will not come apart under high loading. 5/16 in hex-head screw. Especially suited to industrial applications.
Specifications
- Bolt Material
- Stainless Steel
- Grade
- 200
- Height
- 5.0 in
- Hex Bolt Size
- 5/16 in
- Material
- Stainless Steel
- Nominal Opening Size
- 1-1-4 to 2-1/4 in
- Trade Size
- 28
- Width
- 9/16 in
- Brand
- Ideal
- Manufacturer
- IDEAL
