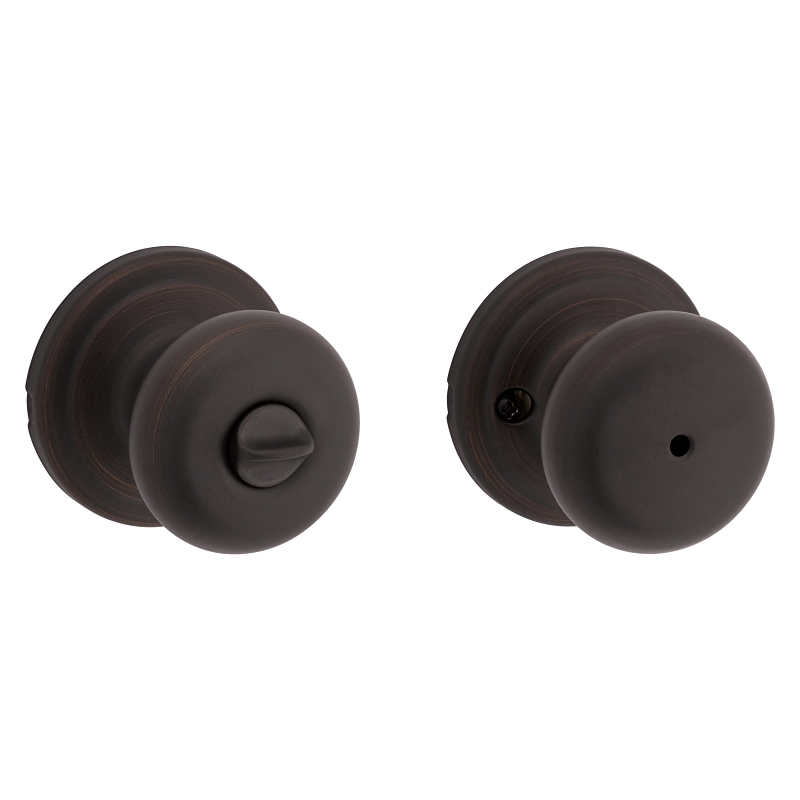

JUNO PRIVACY VENETIAN BRONZE
For bedroom and bathroom doors. Both knobs locked or unlocked by turnbutton inside. Outside knob unlocks by emergency key. Features titanium alloy throwbolt core, anti-pick 6 pin system and ultra-strike for jamb brace. DOOR PREP: 2-1/8″ Cross Bore, 1″ Edge Bore, 1″ x 2-1/4″ Latch Face. BACKSET: 2-3/8″ – 2-3/4″ adjustable. DOOR THICKNESS: 1-3/4″ doors standard. 2-1/4″ doors optional. CYLINDER: 6-pin removable core. 5-pin optional. FACEPLATE: 1″ x 2-1/4″. STRIKE: 2-1/4″ full lip. BOLT: 1″ throw. Nickel plated. HANDING: Reversible for right or left hand doors. ANSI/BHMA: Grade 2.
Specifications
- Backset Size
- 2-3/8 x 2-3/4 in
- Bolt Throw Size
- 1/2 in
- Cross Bore Diameter
- 2-1/8 in
- Cylinder Type
- 5-Pin
- Door Handing
- Reversible
- Door Thickness
- 1-3/8 to 1-3/4 in
- Edge Bore Diameter
- 1 in
- Faceplate Size
- 1 x 2-1/4 in
- Finish
- Venetian Bronze
- Re-Key Technology
- SmartKey
- Security Grade
- 2
- Strike Size
- 2-1/4 in
- Strike Type
- Full Lip
- Suitable for
- Bedroom Bathroom Doors
- Manufacturer
- KWIKSET
