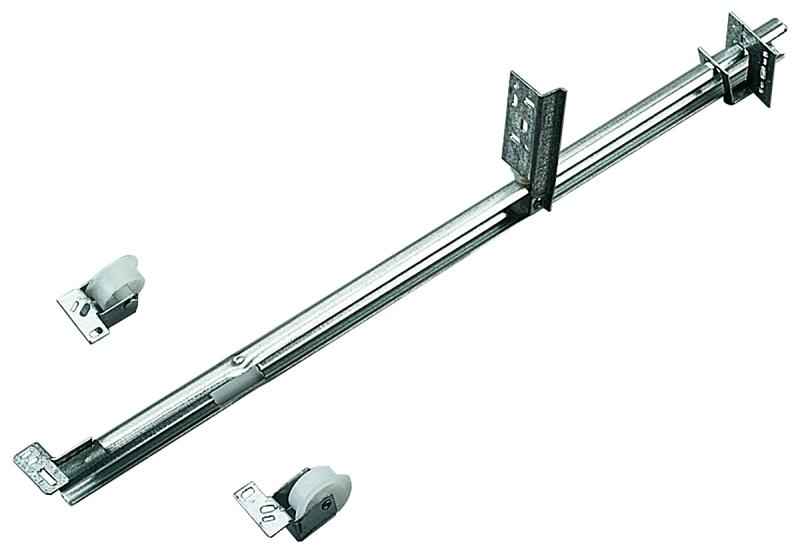

Knape & Vogt 1175P ZC 22-5/8 Drawer Slide, 50 lb, Undermount Mounting, 22-5/8 in L Rail, 1/2 in W Ra
Light-duty slide designed for general drawer applications. Mounts with staples or screws. Height of 1 in. Required Clearance:1/8 in each side, 1-1/2 in from rear of drawer to cabinet, drawer to be 3/8 in shallower than opening. High density polyethylene rollers. Drawers lift out for easy removal. Packaged with screws and installation instructions.
Specifications
- Bearing Type
- Roller
- Finish
- Zinc
- Includes
- 6 x 1/2 in Phillips Flat Head Slide
- Material
- Steel
- Mounting Type
- Center Undermount
- Rail Length
- 22-5/8 in
- Rail Width
- 1/2 in
- Weight Capacity
- 50 lb
- Brand
- KNAPE & VOGT MFG
- Manufacturer
- KNAPE & VOGT MFG
