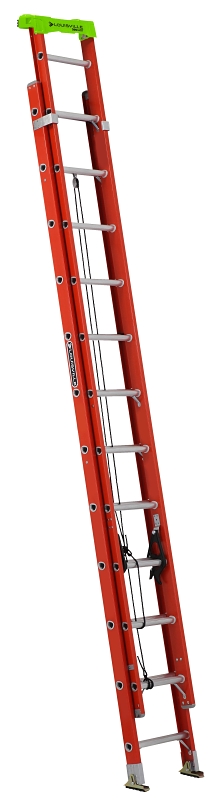

Louisville L-3022-24PT Extension Ladder, 286 in H Reach, 300 lb, 1-1/2 in D Step, Fiberglass, Orange
This Louisville 24 ft fiberglass extension ladder has a 300 lb load capacity, rated ANSI type I. This ladder is equipped with our patented ProTop specially designed to increase productivity. this innovative ProTop features a corner grip, pole grip, integrated bumper and work tray, all compact and accessible in a spacious design. it is equipped with the maxlock rung lock, custom engineered from a patented, advanced molecular polymer, maxlock is the strongest, toughest, lightest rung lock ever made. This ladder also features outside slide guides, fully serrated D-shape rungs for a slip-resistant surface, non-marring rail end caps, quicklatch rung lock for better secure operation, rope and pulley and full heavy-duty metal boot with steel swivel safety shoes to be used with the tread down or in-spike position.
Specifications
- Adjustable Increments
- 12 in
- Base Spread Size
- 6.38 in
- Base Width
- 14.645 in Inside 17.045 in Outside
- Bottom Width
- 17-11/16 in
- Closed Depth
- 6-3/8 in
- Closed Height
- 150 in
- Closed Volume
- 9.857 cu-ft
- Closed Width
- 17.812 in
- Duty Rating
- Type IA
- Extension Length
- 21 ft
- Fly Width
- 13-11/16 in Inside 16.0875 in Outside
- Includes
- Rail Endcaps Rope and Pulley
- Material
- Fiberglass
- Number of Rungs
- 24
- Opening Height
- 24 ft
- Rail Depth
- 3-1/4 in
- Rail Type
- Non-Conductive
- Reach Height
- 286 in
- Rung Size
- 12 ft
- Rung Type
- D-Shaped
- Section Length
- 12 ft
- Stack Height
- 5-7/8 in
- Standing Height
- 207 in
- Step Depth
- 1-1/2 in
- Weight Capacity
- 300 lb
- Work Area
- 21 ft
- Brand
- Louisville
- Color
- Orange
- Size
- 24 ft
- Manufacturer
- LOUISVILLE
