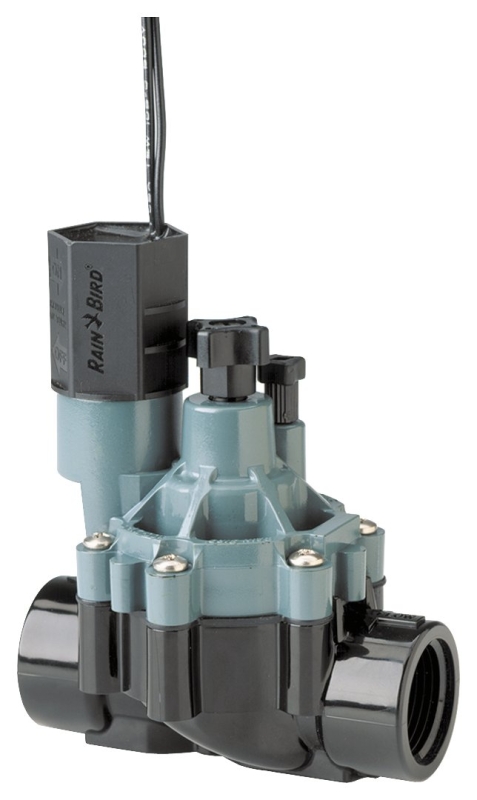

Rain Bird CPF075 Sprinkler Valve with Flow Control, 30 A, 24 V, 3/4 in, FNPT x FNPT, 0.2 to 22 gpm,
Rain Bird manufactures only the highest quality in-line valves. Use in-line valves in locations where the use of a Pressure Vacuum Breaker (PVB) or a double-check valve is required by city codes to protect against back flow. Check your local city codes to determine what type of valves are required. In-line valves are installed below ground in a valve box down stream from the main line from a PVB or double check valve. In-line valves will not prevent back flow on their own and they need the help of a back flow prevention device.
Specifications
- Body Material
- Plastic
- Connection Type
- FNPT x FNPT
- Current Rating
- 30 A
- Flow Rate
- 0.2 to 22 gpm
- Frequency Rating
- 50/60 Hz
- Nominal Size
- 3/4 in
- Pressure Rating
- 15 to 150 psi
- Softgoods material
- Buna-N
- Voltage Rating
- 24 V
- Brand
- Rain Bird
- Manufacturer
- RAINBIRD
