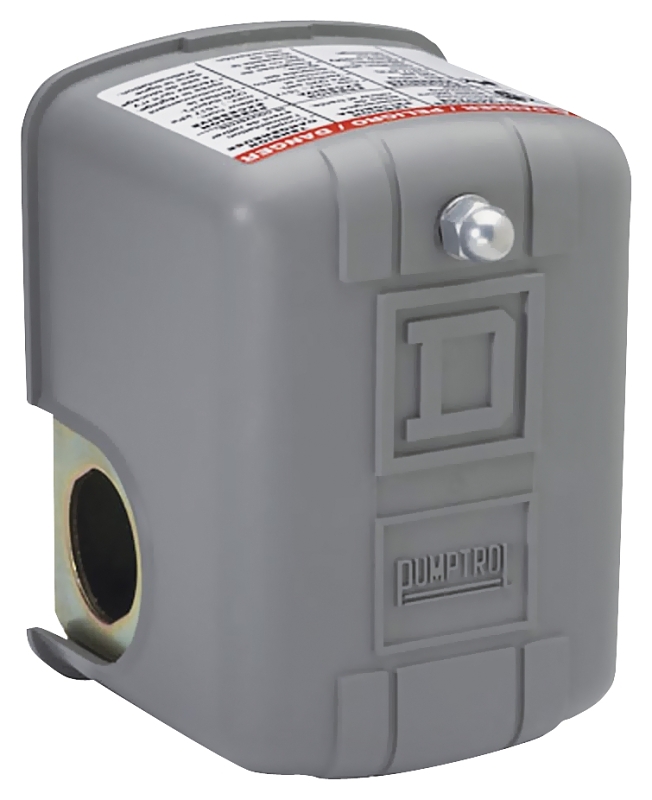

Square D 9013GSG2J20 Pressure Switch, 3-Phase, 10 A, 115/575 V, DPST, Screw Clamp Terminal, NEMA 1 E
Water pump and air compressor pressure switch with 20 to 40 psi cut-in/cut-out settings. Designed to control higher water pumps and air compressors requiring higher electrical ratings. 2-Pole, NEMA 1 enclosure, 1/4 in NPSF internal pressure connection, diaphragm actuated, UL/CSA Listed, RoHS compliant, NSF61-Annex G certified. Individually boxed.
Specifications
- Connection Type
- 1/4 in NPS Female
- Contact Form
- DPST
- Current Rating
- 10 A
- Diaphragm Material
- Nitrile
- Electrical Connection Type
- Screw Clamp Terminal
- Enclosure Type
- NEMA 1
- Number of Phases
- 3
- Operating Cycles
- 100000
- Port Type
- Single
- Temperature Rating
- -22 to 257 deg F
- Voltage Rating
- 115/575 V
- Brand
- Square D
- Manufacturer
- - No Manufacturer -
