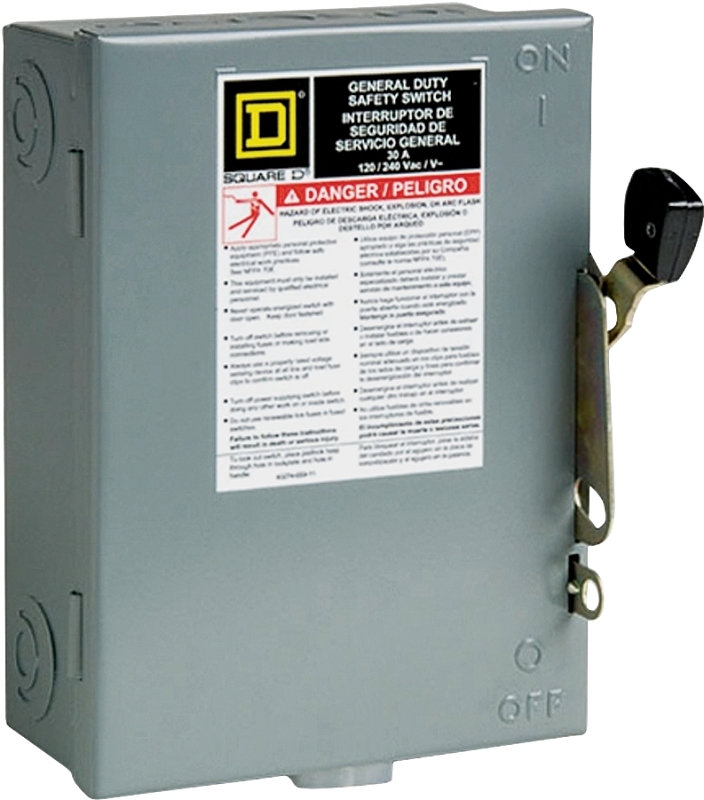

Square D D211NCP Safety Switch, 2-Pole, 30 A, 120/240 V, DPST, Lug Terminal
Single phase, 2-pole, 3-wire, 2 blades and fuseholders, factory installed solid neutral, 120/240 VAC. With metallic enclosure for indoor use. Designed to open or close an electrical circuit in general duty applications. Rated 1-1/2 hp. For residential or commercial applications. For PK3GTA-1 field installable service ground bar kit. With plug type fuse protection. Lugs suitable for aluminum or copper conductors. Spring reinforced plated copper fuse clips. ANSI Certified and UL listed.
Specifications
- Contact Configuration
- DPST
- Current Rating
- 30 A
- Height
- 5.57 in
- Includes
- (2) Blades and Fuse Holders (1) Solid Neutral
- Length
- 9-1/4 in
- Mounting Type
- Surface
- Nema Rating
- NEMA 1
- Number of Poles
- 2
- Number Of Wires
- 3
- Short Circuit Rating
- 10 kA
- Terminal Type
- Lug
- Type
- Fusible
- Voltage Rating
- 120/240 V
- Width
- 6-3/4 in
- Brand
- Square D
- Manufacturer
- - No Manufacturer -
