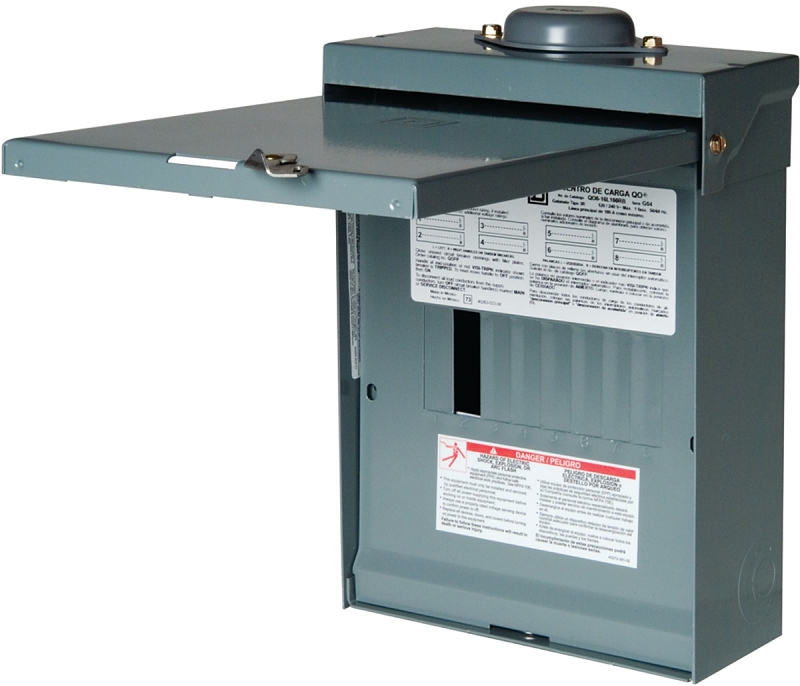

Square D QO QO816L100RBCP Load Center, 100 A, 8-Space, 16-Circuit, Main Lug, NEMA 3R Enclosure, Plug
Main lug outdoor load center, 100 A, 8 space/16 circuit, has a 2-1/2 in maximum type B hub in the top end wall, a 1-1/2 in maximum knockout in the bottom end wall and a B-cap covering on the 2 in bushed opening. NEMA type 3R enclosure with a rainproof cover for outdoor use. ANSI certified and UL listed.
Specifications
- Breaker/Load Center Type
- Main Lug
- Bus Bar Material
- Aluminum
- Cable Size
- 8 to 1 AWG
- Cover/Lid Type
- Surface
- Current Rating
- 100 A
- Enclosure Type
- NEMA 3R
- Finish
- Baked Enamel
- Interrupt Rating
- 10 kA
- Mounting Type
- Plug
- Number of Circuits
- 16
- Number of Phases
- 1
- Number Of Spaces
- 8
- Voltage Rating
- 120/240 V
- Wiring Configuration
- 3-Wire
- Brand
- Square D
- Color
- Gray
- Manufacturer
- - No Manufacturer -
