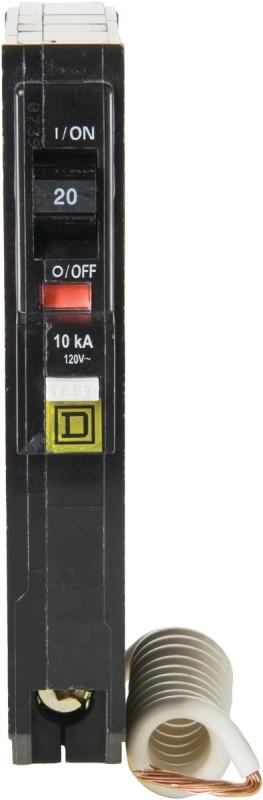

Square D QO120CAFIC Circuit Breaker, Arc-Fault, Type QO, 20 A, 1-Pole, 120/240 V, Fixed Trip, Plug-I
Combination CAFCI 3/4 in single-pole circuit breaker, designed for overload and over-current protection of an electrical system. Thermal-magnetic tripping mechanism. Designed to detect arcs that are caused by damaged, aged or improperly used wires or cords and to disconnect the power. Visi-Trip indicator to identify which circuit is out in the load center. With Time-Saver Diagnostics, advanced trip indication technology, identifying the type of fault that last occurred. 10kA interrupting rating. Uses one space per breaker. 120 VAC. UL listed. Carded.
Specifications
- Current Rating
- 20 A
- Dimensions
- 2-29/32 in L x 3/4 in W x 4-3/4 in H
- Interrupt Rating
- 10 kA
- Mounting Type
- Plug
- Number of Phases
- 1
- Number of Poles
- 1
- Number Of Spaces
- 1
- Terminal Type
- Pressure Contact
- Trip Type
- Fixed
- Type
- AFCI
- Voltage Rating
- 120/240 V
- Wire Size
- 12 to 8 14 to 8 AWG
- Brand
- Square D
- Manufacturer
- - No Manufacturer -
