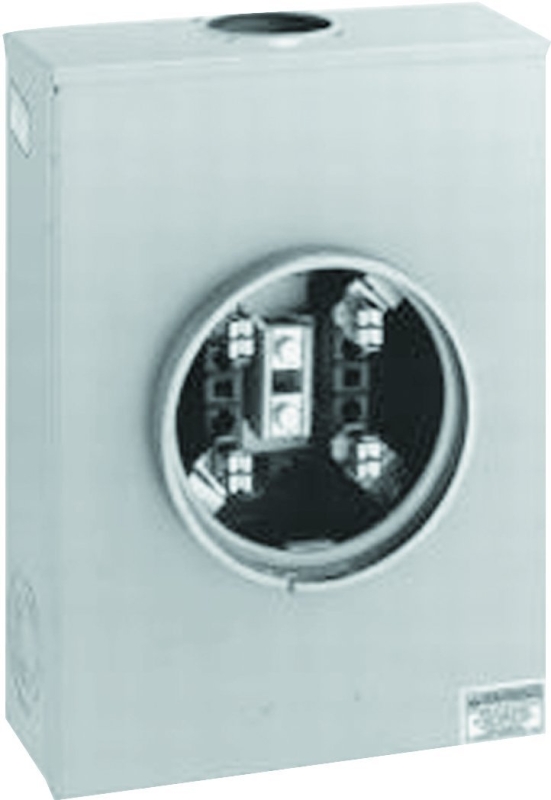

Square D URTRS213B Meter Socket, 1 -Phase, 200 A, 600 V, 4 -Jaw, Overhead, Underground Cable Entry
Single phase, 3-wire, 4-jaw, 600 VAC maximum. Without bypass or jaw release. Steel enclosure material. Unit supplied with bonded neutral. 10,000 RMS symmetrical ampere short circuit current rating. Type-A hub provisions and the bottom end-wall has a 2-1/2 in maximum knockout. Metering is utility specific. Always check with local utility company before installing. UL listed.
Specifications
- Cable Entry
- Overhead Underground
- Current Rating
- 200 A
- Dimensions
- 15 in H x 11.6 in W x 5.4 in D
- Enclosure Type
- NEMA 3R
- Material
- Steel
- Number of Jaws
- 4
- Number Of Knockouts
- 8
- Number of Phases
- 1
- Voltage Rating
- 600 V
- Wire Size
- 1/0 AWG to 350 kcmil 14 to 2 AWG
