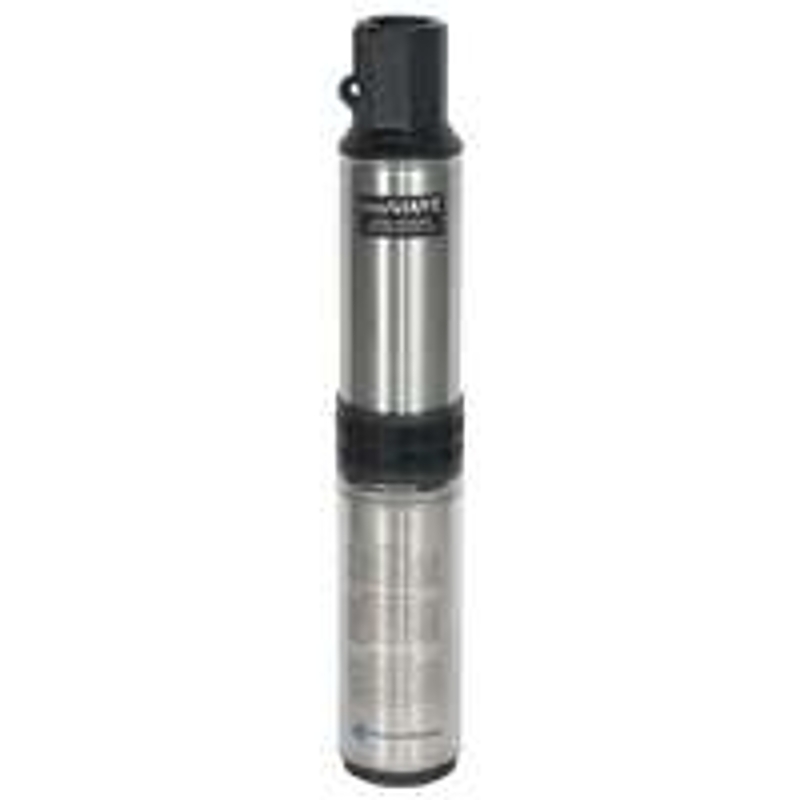

WAYNE RL12G07-3W2V Submersible Well Pump, 8 A, 230 V, 3/4 hp, 1-1/4 in Connection, 240 ft Max Head,
For the supply of fresh water to rural homes, farms and cabins that have 4 in and greater diameter drilled wells to depths of 250 ft
Specifications
- Connection Size
- 1-1/4 in
- Connection Type
- FNPT
- Current Rating
- 8 A
- Flow Rate
- 12 gpm
- HP Rating
- 0.75 hp
- Includes
- Control Box
- Material
- Stainless Steel
- Maximum Head
- 291 ft
- Motor Type
- 3-Wire
- Pressure Rating
- 80 psi
- Suitable for
- 4 in Dia and Above Drilled Wells
- Voltage Rating
- 230 V
- Manufacturer
- RED VINES
